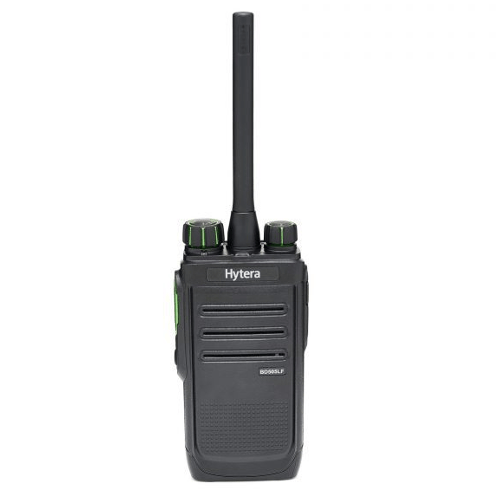

Hytera BD505LF Licence-Free Digital PMR446 Radio, No-Charger Kit

SKU: BD505LF
Availability by quotation

Screen-free DMR Tier I and analogue PMR446 radio with fixed antenna and IP54 protection. No-charger base kit includes a BL1506 1500 mAh battery, BC08 clip and RO03 wrist strap. Complete single charging is a separate selection.

What's in the Box

  • 1 × Hytera BD505LF radio with integrated antenna
  • 1 × BL1506, 1500 mAh lithium-ion
  • 1 × BC08 belt clip
  • 1 × RO03 wrist strap
  • User documentation

More Info ↓

No online payment is taken

The BD505LF is a compact, screen-free PMR446 radio with DMR Tier I digital and analogue voice operation. This listing starts with the no-charger kit, allowing the charging arrangement to match the equipment already in use.

Choose the radio and charging layout

Compare BP515LF for a different battery and accessory system, or choose four radios with individual chargers, six with individual chargers or six with shared charging.

Use the correct PMR446 version

This PMR446 handheld is intended for licence-free use in the UK within the applicable PMR446 conditions. It uses the shared 446.0–446.2 MHz band, a fixed antenna and 0.5 W transmit power. It is a different version from the licensed UHF/VHF radios. PMR446 does not provide a private or protected frequency, and these radios are not a repeater or fixed-base system.

Match the actual channel frequency, analogue or digital mode and compatible settings across the fleet. A matching channel number or brand is not enough. CTCSS/DCS codes can filter which analogue calls are heard; they do not reserve a private radio channel. Buildings, terrain and other users affect coverage, so plan around the site rather than an advertised distance.

For the UK operating conditions, see Ofcom’s Business Radio Guidance, section 9. Compare the UK two-way radio licensing guide when choosing between PMR446 and a licensed radio system.

Batteries and charging

The base NC kit has no charger. Selecting Single Charger adds one CH10L23 cradle and one PS1044 power supply with its UK fitting. The cradle requires the power supply; a mains plug alone is not the complete charging setup.

BL1506 is the matching 1500 mAh spare battery. The manufacturer’s standard-battery reference is about 16 hours digital or 12 hours analogue at a 5/5/90 duty cycle. Actual runtime changes with calls, standby time and battery condition.

Choose a complete audio path

The EH-02 receive-only earpiece needs the ACM-01 microphone/PTT controller: radio → controller → earpiece. EH-02 does not connect directly to the radio. For a complete wired audio accessory, match the two-pin radio connector and the exact listed model. PC76 is the listed programming cable; cable purchase does not include software or a programming service.

Common questions

Will these work with our existing PMR446 radios?

Match the actual frequency and analogue or compatible digital mode, plus the relevant settings. A shared brand or channel number does not establish compatibility.

Are the listed channel entries private frequencies?

No. Programmed channel entries are memories for settings on the shared PMR446 spectrum. They do not provide exclusive or private frequencies.

Does the quoted runtime guarantee a full shift?

No. Manufacturer runtime references use a defined duty cycle. Calls, standby time, battery condition and other usage differences change the result.

Accessories for the Hytera BD505LF

Audio and complete earpiece chains

Connect EA-01 or EH-02 through the SM08M3 speaker microphone. These receive-only earpieces do not connect directly to the radio.

  • EA-01 — Receive-only acoustic-tube earpiece.
  • EH-02 — Receive-only swivel earpiece.

Programming

The cable provides the physical connection. Software, access rights and programming service are separate requirements.

  • PC76 — USB-A to two-pin programming cable.

Include the exact radio model and version, existing accessories and quantities in your quote enquiry. The itemised quote will identify the supplied configuration.

Enquire with your existing radio models, quantities and charging requirements for a written quote. Browse the Hytera range for other equipment choices.
