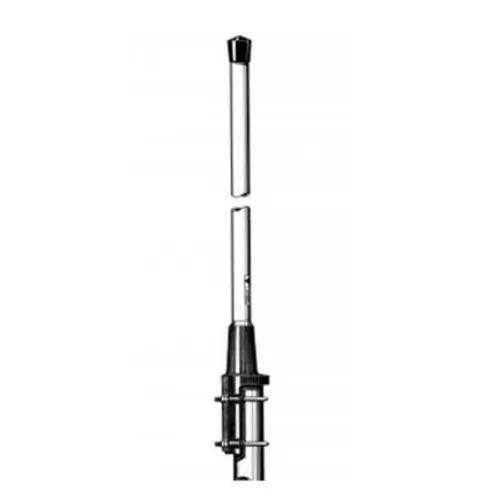

Procom CXL 3dB VHF Base Station Antenna | 153-162MHz
If you are setting up a reliable communication network, having the right base station antenna is crucial. The Procom CXL 3dB VHF Base Station Antenna is designed to deliver consistent, omnidirectional coverage across the 153-162 MHz frequency band. Built for durability and performance, this vertically polarised antenna is an excellent choice for keeping your team connected across various demanding environments.
What makes the Procom CXL 3dB antenna stand out?
This antenna is engineered for optimal signal strength and reliability. It features a 5 dBi (3 dBd) gain and can handle a maximum power of 150 W, ensuring your transmissions are clear and powerful. Because it is vertically polarised and omnidirectional, it provides excellent 360-degree coverage, making it ideal for central base stations that need to communicate with users in all directions.
How easy is it to install?
Installation is straightforward and highly adaptable to your specific site requirements. The antenna comes equipped with a sturdy "LW" mast mount, which allows for both vertical and horizontal mounting configurations. This flexibility ensures you can securely attach it to your existing infrastructure with minimal hassle.
What are the technical specifications?
Here is a quick breakdown of the core technical details for this Procom antenna:
- Frequency Range: 153-162 MHz (VHF)
- Polarisation: Vertical
- Radiation Pattern: Omnidirectional
- Gain: 5 dBi (3 dBd)
- Max Power: 150 W
- Mounting: "LW" mast mount (Vertical or horizontal)
- Weight: 0.22 kg
