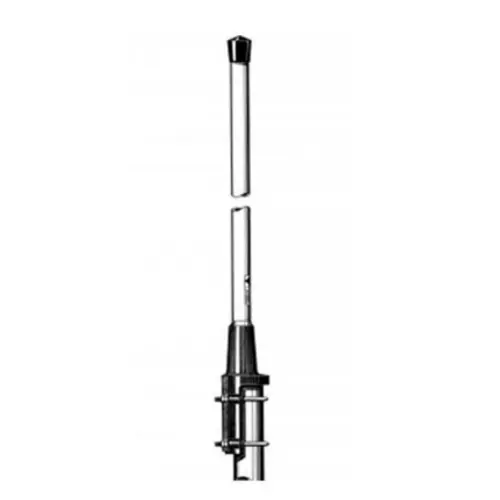

Procom CXL 3dB UHF Base Station Antenna | 440-470MHz

Are you setting up a reliable communication network and need an antenna that delivers consistent performance? The Procom CXL 3dB UHF Base Station Antenna is designed to provide excellent, omnidirectional coverage for your two-way radio system. Whether you are operating in construction, retail, or educational environments, this vertically polarised antenna ensures your team stays connected when it matters most.

What frequency range does this antenna cover?

This Procom base station antenna is specifically tuned for the UHF band, providing seamless coverage across the 440-470 MHz frequency range. It features a 5 dBi (3dBd) gain and can handle a maximum power output of 150 watts, making it a robust choice for heavy-duty, everyday use.

How easy is it to install?

Installation is straightforward thanks to the included sturdy "LW" mast mount. The mounting hardware is designed to securely fit any standard pole with an outside diameter (OD) ranging from 16mm to 54mm, giving you flexibility in where and how you set up your base station.

What are the technical specifications?

Here is a quick breakdown of the core specifications for the Procom CXL antenna:

• Frequency Band: UHF (440-470 MHz)
• Polarisation: Vertically polarised, omnidirectional
• Gain: 5 dBi (3dBd)
• Max Power: 150W
• Mounting: Fits 16-54mm OD poles via "LW" mast mount
• Weight: 0.22 kg
