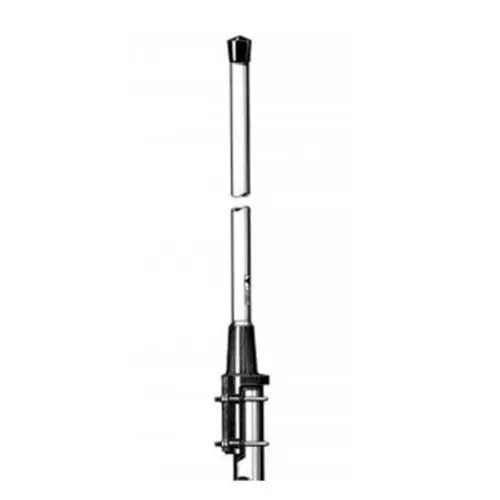

Procom CXL 0dB VHF Base Station Antenna (155-175MHz)
If you are setting up a reliable communication network for your site, finding the right base station antenna is crucial. The Procom CXL 0dB VHF Base Station Antenna is designed to deliver consistent, omnidirectional coverage across the 155-175 MHz frequency band. Whether you are operating in construction, retail, or educational environments, this multi-purpose antenna provides the durability and performance needed to keep your team connected.
What are the key performance features of this antenna?
This Procom antenna is built for efficiency and power. It operates within the 160 MHz band, specifically covering frequencies from 155 to 175 MHz. With a 2 dBi (0 dBd) gain and the capacity to handle up to 150 watts of maximum power, it ensures your base station transmits and receives clear, strong signals across your entire coverage area.
How easy is it to install the Procom CXL?
Installation is straightforward and secure. The antenna comes equipped with a sturdy "LW" mast mount, which is designed to easily attach to standard poles. It is fully compatible with pole outer diameters ranging from 16mm to 54mm, giving you plenty of flexibility when choosing your mounting location.
What are the technical specifications?
- Frequency Range: 155-175 MHz (160 MHz band)
- Gain: 2 dBi (0 dBd)
- Maximum Power: 150 W
- Mounting: Fits 16-54mm OD poles
- Mount Type: Sturdy "LW" mast mount
- Weight: 0.22 kg
