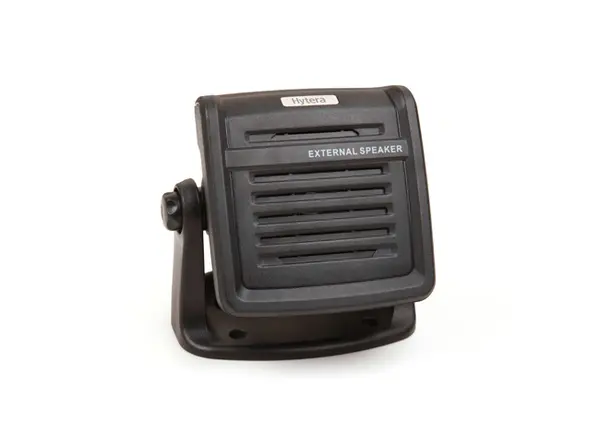

Hytera SM09D1 External Speaker | Clear Audio for Mobiles
Struggling to hear your mobile radio communications over the roar of a noisy work environment? The Hytera SM09D1 external speaker is designed to solve exactly that. Built specifically for broadcasting applications, this robust speaker ensures your team's messages come through loud and clear, no matter the background noise.
Why choose the Hytera SM09D1 external speaker?
If you operate in high-noise areas, standard radio speakers often fall short. The SM09D1 features a large speaker element with a rated power of 15W and a maximum output of 20W, guaranteeing exceptional audio clarity. It connects seamlessly via a DB26 pin audio port and includes an adjustable fixing bracket, allowing you to mount it easily on either horizontal or vertical surfaces inside your vehicle or control room.
Is this speaker compatible with my Hytera radio?

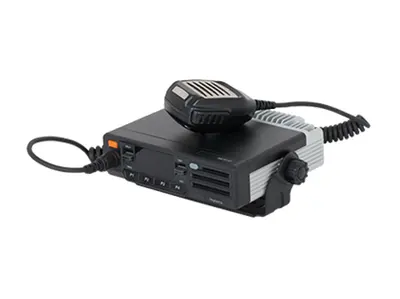

Yes, if you are using compatible Hytera mobile terminals. This speaker is specifically designed to work with the MT680, MD780, and MD880T models, as well as the broader MD600 and MD700 series. If you are upgrading your vehicle's communication setup, it pairs perfectly with mobile radios like the Hytera MD785, Hytera MD655, Hytera MD625, and Hytera MD615.
What are the technical specifications?
Built for reliability in demanding conditions, the SM09D1 offers the following performance specs:
- Rated Impedance: 8Ω±15% (@ 500Hz)
- Sound Pressure Level: 88±2db (1w/1m) (@ 600/700/800/900Hz AVE)
- Power Output: 15W Rated / 20W Maximum
- Dimensions: 155.6 x 92.5 x 140.2 mm
- Weight: Approximately 774g
- Operating Temperature: -25℃ to 65℃
- Connection: DB26 pin audio port
