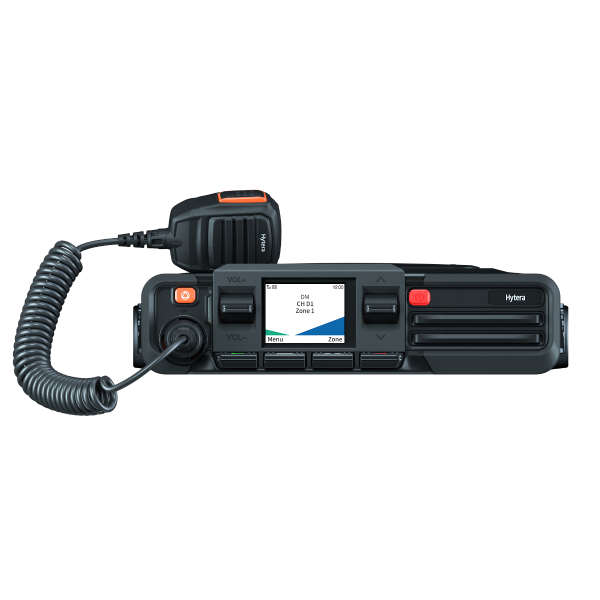

Hytera HM685H U1 Professional DMR Mobile Radio 400-470MHz High Power Display

When greater communication range is needed in the UHF (400-470MHz) band, the Hytera HM685H U1 delivers with its high power output (5-45W). This professional DMR mobile radio features an integrated transflective display and ergonomic piano-style keys for clear visibility and easy operation. AI-based noise cancellation ensures superb audio clarity, while high receiver sensitivity maintains smooth communication. The HM685H U1 is a robust and powerful solution for users demanding extended reach and a user-friendly interface.

Key Features

• Supports DMR Tier II digital and analogue conventional modes
• Integrated Display (1.45" transflective LCD) and 4 piano-style keys
• Frequency Range 400-470MHz (UHF)
• Power Output 5-45W (High Power)
• AI-Based Noise Cancellation
• High RX Sensitivity
• MIL-STD-810G, IP54 Rated

What's in the Box?

• Hytera HM685H U1 Radio Unit (UHF, High Power, Display)
• SM16A1View product details for Hytera SM16A1 Palm Microphone for HM685/HM785/MNC360 Mobile Radios Palm Microphone
• PWC10View product details for Hytera PWC10 Vehicle Power Cord (12VDC / 15A, 3m) Vehicle Power Cord
• BRK08View product details for Hytera BRK08 Mounting Bracket for Mobile Radios Mounting Bracket
• (RF Antenna to be ordered separately)

Hytera HM685H U1 Compatibility & Optional Accessories

Optional Licences

• SW00012View product details for Hytera SW00012 Digital Mode Roaming Licence License to enable Roaming in digital mode
• SW00017View product details for Hytera SW00017 DMRA AES Encryption Licence (AES128/AES256) DMRA AES Encryption Licence
• SW00052View product details for Hytera SW00052 Priority Interrupt Licence Licence to enable priority interrupt function

Standard Accessories (Part of package or primary separate order)

• SM16A1View product details for Hytera SM16A1 Palm Microphone for HM685/HM785/MNC360 Mobile Radios Palm microphone (for HM685) - Included
• PWC10View product details for Hytera PWC10 Vehicle Power Cord (12VDC / 15A, 3m) Vehicle power cord 12 VDC / 15 A (3 m) - Included

Compatible Antennas (UHF Mobile - Order Separately)

• AN0438M07View product details for Hytera AN0438M07 UHF Magnetic Mount Antenna (430-446MHz, 5.5dBi, BNC) TQC-400DII UHF antenna, 430-446 MHz, 5.5 dBi, 1.1m, magnetic mount, cable (5m) with BNC connector
• AN0440M09View product details for Hytera AN0440M09 UHF Magnetic Mount Antenna (430-450MHz, 3.5dBi, 0.4m, BNC) TQC-400FCS UHF antenna, 430-450 MHz 3.5 dBi, 0.4m, magnetic mount, cable (5m) with BNC connector
• AN0462M02View product details for Hytera AN0462M02 UHF Magnetic Mount Antenna (454-470MHz, 5dBi, 0.4m, BNC) TQC-400FC UHF antenna, 454-470 MHz, 5 dBi, 0.4m, magnetic mount, cable (3m) with BNC connector

Compatible Power Options (Ensure PSU/Converter meets High Power requirements)

• PS22002View product details for Hytera PS22002 Power Supply Unit (220W, 13.8VDC/16A, UK Plug) Power supply unit with fan control circuit (220 W) 100-240 VAC - 13.8 VDC / 16 A, with UK plug PWC03View product details for Hytera PWC03 AC Power Cord – UK Plug for HR1065 Repeater power cord (Sufficient for high power)
• PS22002View product details for Hytera PS22002 Power Supply Unit (220W, 13.8VDC/16A, UK Plug) (EU) Power supply unit with fan control circuit (220 W) 100-240 VAC - 13.8 VDC / 16 A, with EU plug PWC03View product details for Hytera PWC03 AC Power Cord – UK Plug for HR1065 Repeater power cord (Sufficient for high power)
• PV12sView product details for Alfatronix PV12s Voltage Converter (24VDC to 12VDC, 12A/18A, Non-Isolated) Alfatronix 24VDC to 12VCD voltage converter, 12A/18A non-isolated, 144W (Suitable for high power)
• PV12iView product details for Alfatronix PV12i Voltage Converter (24VDC to 12VDC, 12A/18A, Isolated) Alfatronix 24VDC to 12VCD voltage converter, 12A/18A isolated, 144W (Suitable for high power)

Compatible Mounting Solutions

• BRK08View product details for Hytera BRK08 Mounting Bracket for Mobile Radios Mounting bracket - Included
• BRK12View product details for Hytera BRK12 Rack Mount Installation Accessory (2U, Black) Installation accessory for rack-mounted power supply (2U) (black)
• BRK14View product details for Hytera BRK14 Rack Mount Installation Accessory (2U, Grey) Installation accessory for rack-mounted power supply (2U) (grey)

Compatible Audio & Cables

• SM09D1View product details for Hytera SM09D1 External Speaker (15W) for Mobile Radios/Repeaters External speaker (15 W)
• SM09D2View product details for Hytera SM09D2 External Speaker (15W) with 5m Cable for Mobile Radios/Repeaters External speaker (15 W) with 5m cable
• SM10A1View product details for Hytera SM10A1 Desktop Microphone for Mobile Radios/Repeaters Desktop microphone
• PC37View product details for Hytera PC37 Programming Cable (USB to 10-pin Aviation Connector) - DISCONTINUED Programming Cable (USB to 10-pin Aviation Connector) (DISCONTINUED – please use PC47View product details for Hytera PC47 Programming Cable (USB to 10-pin Aviation, Toggle Switch))
• PC40View product details for Hytera PC40 Programming Cable (USB to DB26 Connector, 1.2m) Programming cable (USB) to DB26 connector, 1.2m
• PC47View product details for Hytera PC47 Programming Cable (USB to 10-pin Aviation, Toggle Switch) Programming cable (USB) to 10-pin aviation connector with toggle switch
• PC49View product details for Hytera PC49 Back-to-Back Data Cable (DB26 to DB26, 0.6m, No Logo) Back-to-back data cable (DB26 to DB26), HD-CA3T, 0.6m
• PC80View product details for Hytera PC80 Programming Cable for PNC380 PoC Radio Programming Cable for SM27W1View product details for Hytera SM27W1 Wireless Remote Speaker Microphone (IP54, BT 4.0, Fixed Mount), USB AM to Micro USB, 1.5m, Hytera logo
• PC110View product details for Hytera PC110 Back-to-Back Data Cable (DB26 to DB26, Mobile/Repeater, 0.6m) Back-to-back data cable (DB26 to DB26), for mobile radio and repeater, 0.6m length
