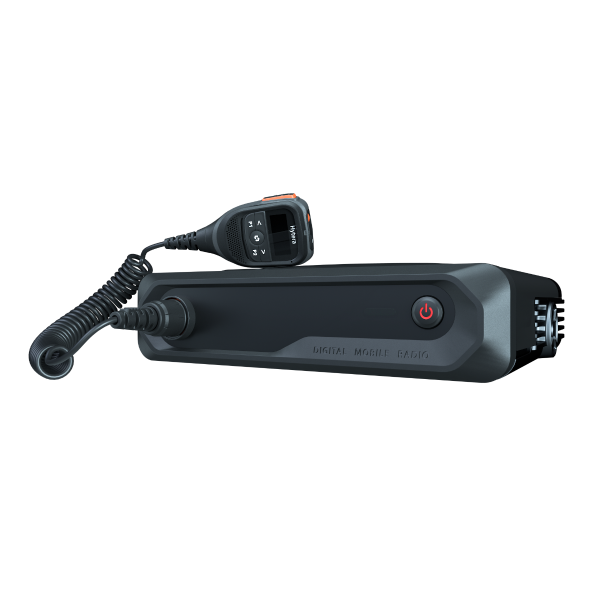

Hytera HM655HG BT V1 Pro DMR Mobile Radio VHF High Power GPS Bluetooth

Offering maximum VHF (136-174MHz) range with its high power output (5-45W), the Hytera HM655HG BT V1 also integrates GPS for location services and Bluetooth 5.0 for wireless audio and programming. This professional DMR mobile radio, featuring a remote speaker microphone with display and AI-based noise cancellation, provides a complete communication solution for users needing power, range, location tracking, and wireless convenience in demanding operational environments.

Key Features

• Supports DMR Tier II digital and analogue conventional modes
• Integrated GPS for location tracking
• Integrated Bluetooth 5.0 for wireless audio and programming
• Frequency Range 136-174MHz (VHF)
• Power Output 5-45W (High Power)
• Remote Speaker Microphone (SM25A1View product details for Hytera SM25A1 Palm Microphone for HM655 Mobile Radio) with LCD
• AI-Based Noise Cancellation
• High RX Sensitivity
• MIL-STD-810G, IP54 Rated

What's in the Box?

• Hytera HM655HG BT V1 Radio Unit (VHF, HP, GPS, BT)
• SM25A1View product details for Hytera SM25A1 Palm Microphone for HM655 Mobile Radio Remote Speaker Microphone with LCD
• PWC10View product details for Hytera PWC10 Vehicle Power Cord (12VDC / 15A, 3m) Vehicle Power Cord
• BRK08View product details for Hytera BRK08 Mounting Bracket for Mobile Radios Mounting Bracket
• DAMA1575AT41View product details for Hytera DAMA1575AT41 Mobile GPS Antenna (SMA Connector, 1575.42MHz) Mobile GPS Antenna
• (RF Antenna to be ordered separately)

Hytera HM655HG BT V1 Compatibility & Optional Accessories

Optional Licences

• SW00012View product details for Hytera SW00012 Digital Mode Roaming Licence License to enable Roaming in digital mode
• SW00017View product details for Hytera SW00017 DMRA AES Encryption Licence (AES128/AES256) DMRA AES Encryption Licence
• SW00052View product details for Hytera SW00052 Priority Interrupt Licence Licence to enable priority interrupt function

Standard Accessories (Part of package or primary separate order)

• SM25A1View product details for Hytera SM25A1 Palm Microphone for HM655 Mobile Radio Palm microphone with integrated screen and button controls (for HM655) - Included
• PWC10View product details for Hytera PWC10 Vehicle Power Cord (12VDC / 15A, 3m) Vehicle power cord 12 VDC / 15 A (3 m) - Included
• DAMA1575AT41View product details for Hytera DAMA1575AT41 Mobile GPS Antenna (SMA Connector, 1575.42MHz) Mobile GPS antenna, SMA connector, 1575.42 ±5 MHz - Included

Compatible Antennas (VHF Mobile - Order Separately)

• AN0136M05View product details for Hytera AN0136M05 VHF Vehicle Antenna (136MHz, 3.5dBi, BNC, CTZ-CK1 Mount) VHF 136MHz TQC-150DII, 6Mhz Bandwidth, 3.5dBi Gai, 1.1m Antenna length, 3m Feeder Length, BNC jack, CTZ-CK1 mount
• AN0138M06View product details for Hytera AN0138M06 VHF Vehicle Antenna (134-142MHz, 3.5dBi, BNC, CTZ-CK1 Mount) VHF (134-142MHz) TQC-150DII, 6Mhz Bandwidth, 3.5dBi Gai, 1.1m Antenna length, 3m Feeder Length, BNC jack, CTZ-CK1 mount

Compatible Power Options (Ensure PSU/Converter meets High Power requirements)

• PS22002View product details for Hytera PS22002 Power Supply Unit (220W, 13.8VDC/16A, UK Plug) Power supply unit with fan control circuit (220 W) 100-240 VAC - 13.8 VDC / 16 A, with UK plug PWC03View product details for Hytera PWC03 AC Power Cord – UK Plug for HR1065 Repeater power cord (Sufficient for high power)
• PS22002View product details for Hytera PS22002 Power Supply Unit (220W, 13.8VDC/16A, UK Plug) (EU) Power supply unit with fan control circuit (220 W) 100-240 VAC - 13.8 VDC / 16 A, with EU plug PWC03View product details for Hytera PWC03 AC Power Cord – UK Plug for HR1065 Repeater power cord (Sufficient for high power)
• PV12sView product details for Alfatronix PV12s Voltage Converter (24VDC to 12VDC, 12A/18A, Non-Isolated) Alfatronix 24VDC to 12VCD voltage converter, 12A/18A non-isolated, 144W (Suitable for high power)
• PV12iView product details for Alfatronix PV12i Voltage Converter (24VDC to 12VDC, 12A/18A, Isolated) Alfatronix 24VDC to 12VCD voltage converter, 12A/18A isolated, 144W (Suitable for high power)

Compatible Mounting Solutions

• BRK08View product details for Hytera BRK08 Mounting Bracket for Mobile Radios Mounting bracket - Included
• BRK12View product details for Hytera BRK12 Rack Mount Installation Accessory (2U, Black) Installation accessory for rack-mounted power supply (2U) (black)
• BRK14View product details for Hytera BRK14 Rack Mount Installation Accessory (2U, Grey) Installation accessory for rack-mounted power supply (2U) (grey)

Compatible Wired Audio & Cables

• SM09D1View product details for Hytera SM09D1 External Speaker (15W) for Mobile Radios/Repeaters External speaker (15 W)
• SM09D2View product details for Hytera SM09D2 External Speaker (15W) with 5m Cable for Mobile Radios/Repeaters External speaker (15 W) with 5m cable
• SM10A1View product details for Hytera SM10A1 Desktop Microphone for Mobile Radios/Repeaters Desktop microphone
• PC37View product details for Hytera PC37 Programming Cable (USB to 10-pin Aviation Connector) - DISCONTINUED Programming Cable (USB to 10-pin Aviation Connector) (DISCONTINUED – please use PC47View product details for Hytera PC47 Programming Cable (USB to 10-pin Aviation, Toggle Switch))
• PC40View product details for Hytera PC40 Programming Cable (USB to DB26 Connector, 1.2m) Programming cable (USB) to DB26 connector, 1.2m
• PC47View product details for Hytera PC47 Programming Cable (USB to 10-pin Aviation, Toggle Switch) Programming cable (USB) to 10-pin aviation connector with toggle switch
• PC49View product details for Hytera PC49 Back-to-Back Data Cable (DB26 to DB26, 0.6m, No Logo) Back-to-back data cable (DB26 to DB26), HD-CA3T, 0.6m
• PC80View product details for Hytera PC80 Programming Cable for PNC380 PoC Radio Programming Cable for SM27W1View product details for Hytera SM27W1 Wireless Remote Speaker Microphone (IP54, BT 4.0, Fixed Mount), USB AM to Micro USB, 1.5m, Hytera logo
• PC110View product details for Hytera PC110 Back-to-Back Data Cable (DB26 to DB26, Mobile/Repeater, 0.6m) Back-to-back data cable (DB26 to DB26), for mobile radio and repeater, 0.6m length

Compatible Wireless Audio (Bluetooth)

• SM27W1View product details for Hytera SM27W1 Wireless Remote Speaker Microphone (IP54, BT 4.0, Fixed Mount) Wireless remote speaker microphone IP54 (with fix mount), BT 4.0
